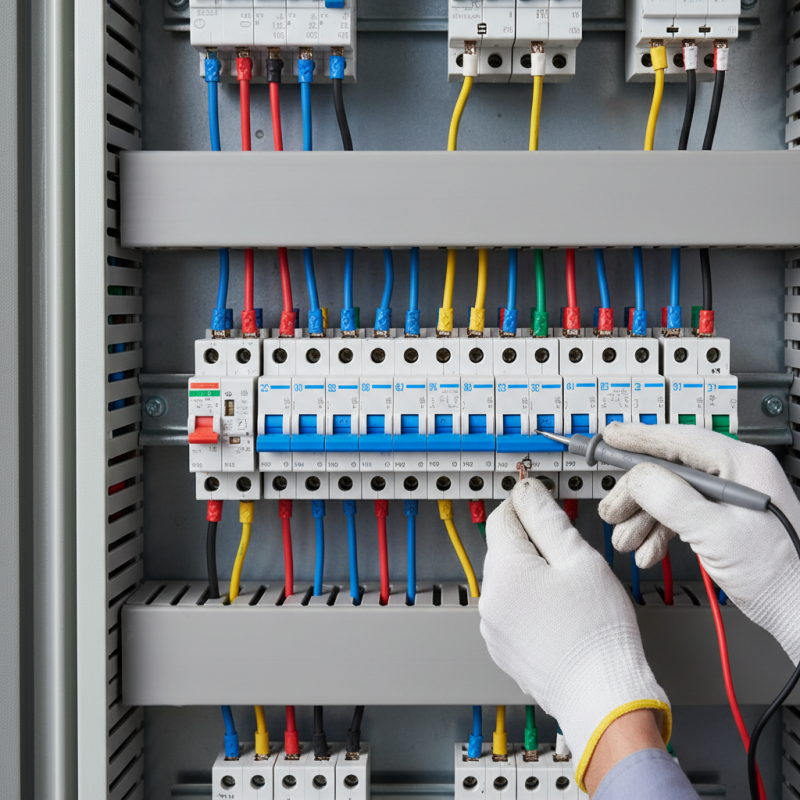

How to Choose the Right Miniature Circuit Breaker for Your Needs?

Selecting the right Miniature Circuit Breaker (MCB) is crucial for electrical safety and efficiency. According to a recent report by the International Electrotechnical Commission (IEC), improper selection can lead to increased risks of electrical failures and fire hazards. The global MCB market is expected to reach $5 billion by 2027, indicating its growing importance in both residential and industrial applications.

Industry expert John Smith emphasizes, "Choosing the correct Miniature Circuit Breaker is not just about specifications, but understanding your specific needs." This perspective highlights the complexity behind the selection process. Customers often overlook critical factors, such as overload protection, tripping characteristics, and installation environment. Each electrical setup requires careful evaluation, and a one-size-fits-all approach may fall short.

The failure to choose an appropriate MCB can lead to costly repairs and even unsafe conditions. There remain many misconceptions about MCB capabilities and standards. While advancements in technology have improved reliability, users must stay informed. Emphasis on compatibility with existing systems and local codes is vital to ensure optimal performance and safety. A wrong selection can lead to performance issues, ultimately undermining the very purpose of the MCB.

Factors to Consider When Selecting a Miniature Circuit Breaker

Choosing the right miniature circuit breaker (MCB) involves several key factors. First, assess the load capacity of your system. MCBs are rated based on their current-carrying capacity, commonly ranging from 6A to 63A. According to industry reports, selecting an MCB that matches your electrical load is crucial to prevent overloads and minimize risks.

Another important aspect is the type of MCB. There are several types, including type B, type C, and type D, each designed for different applications. Type B is suitable for residential use, as it trips easily for low overloads. Conversely, Type C caters to commercial settings with higher inrush currents, making it suitable for motors. Understanding these distinctions can guide suitable selections.

Tip: Always consider the environment where the MCB will be installed. Factors like humidity and temperature can affect performance. Ensure the MCB meets any specific environmental standards needed.

Consider maintenance and future upgrades as well. Your needs may evolve, and a circuit breaker should ideally accommodate changes without the need for complete replacement. Regularly inspect and test your MCBs to ensure they function correctly. Remember, failure to do so can lead to costly repairs or safety hazards.

Understanding the Different Types of Miniature Circuit Breakers

When choosing a miniature circuit breaker (MCB), it's essential to understand the different types available. MCBs protect circuits by automatically switching off during overloads or short circuits. They come in various characteristics, mainly Type B, C, and D. Each type serves a different purpose in electrical systems.

Type B breakers are suitable for residential applications. They trip quickly with small overloads. This makes them ideal for protecting lights and general appliances. Type C breakers handle larger inrush currents, suitable for commercial settings. They can manage motors and transformers without tripping unnecessarily. Lastly, Type D breakers are designed for high inrush current situations, often found in industrial environments.

Selecting the right type requires careful consideration. Assessing the electrical load and patterns is crucial. Take note of specific equipment and usage. Mismatched breakers can lead to nuisance tripping or insufficient protection. This can result in inconvenience and potential damage. It is essential to reflect on your specific needs and usage habits before making a decision.

Evaluating the Current Rating Required for Your Electrical System

Choosing the right miniature circuit breaker (MCB) involves understanding your electrical system's current rating. This rating determines how much current your MCB can handle before tripping. Assessing your needs accurately is essential for safety and efficiency. A mismatch may lead to frequent tripping or, worse, electrical hazards.

Consider the total load on your circuits. Calculate the combined wattage of all devices. This total helps you find the appropriate current rating. A good rule of thumb is to select an MCB that exceeds the expected load by about 20%. If your total load is around 16 amps, a 20-amp MCB is wise.

Tips: Regularly review your electrical needs. Devices can change over time. Also, think about future expansions. Maybe you plan to install new devices. If so, opt for an MCB with a slightly higher rating. Remember, going too high can mask underlying issues. Balance is key. Avoid choosing a breaker without adequate research. Each choice impacts your safety and efficiency.

Assessing Short-Circuit and Overload Protection Needs

Choosing the correct miniature circuit breaker (MCB) requires a clear understanding of your protection needs. Short-circuit and overload protection are critical factors to consider. According to industry data, nearly 30% of electrical failures are caused by overloads. This can lead to significant damage if not properly managed.

When selecting an MCB, assess the total load of your circuit. Know the maximum current your appliances will draw. This gives you a baseline for choosing the right MCB rating. MCBs come in various ratings, often ranging from 6A to 32A. Using a breaker rated lower than your load isn’t wise. It can trip too frequently, disrupting your operations.

**Tip:** Always consult the latest National Electrical Code (NEC) guidelines. They provide essential insights on recommended ratings and applications. Regularly check the health of installed MCBs. Aging units may not function optimally.

Understanding short-circuit protection is also vital. Short circuits can happen suddenly and result in fires or equipment failure. Reports indicate that 47% of electrical fires are linked to short circuits. It is crucial to choose an MCB with an adequate breaking capacity. This ensures it can handle the fault currents safely.

**Tip:** Look for MCBs with a tripping characteristic suited to your application. Type B for residential or Type C for commercial may be needed. Re-evaluating your choices is essential; don’t settle for the first option.

How to Choose the Right Miniature Circuit Breaker for Your Needs?

Compliance with Standards: IEC and UL Requirements for Safety

When selecting a miniature circuit breaker (MCB), compliance with safety standards is crucial. The International Electrotechnical Commission (IEC) and Underwriters Laboratories (UL) set standards that ensure reliable operation. MCBs adhering to these standards help prevent electrical faults. They often withstand extreme conditions, maintaining performance under pressure. Data shows that over 20% of electrical fires are due to faulty wiring. MCBs can significantly mitigate these risks.

IEC standards focus on performance and reliability. MCBs must trip in a specific time frame to protect against overloads. UL standards also emphasize safety and performance, but they include rigorous testing for environmental factors. Less than 5% of products meet all requirements during initial testing. Most fail due to the absence of adequate thermal protection. This highlights how essential it is to choose MCBs that have robust certifications.

Not all manufacturers provide clear compliance documentation. This lack of transparency can lead to costly failures. Inspecting the listed certification marks is vital. While many MCBs might claim compliance, not all adhere to the stringent requirements. Careful selection based on reliable documentation can prevent dire consequences. Always research and understand the standards before making a decision.
