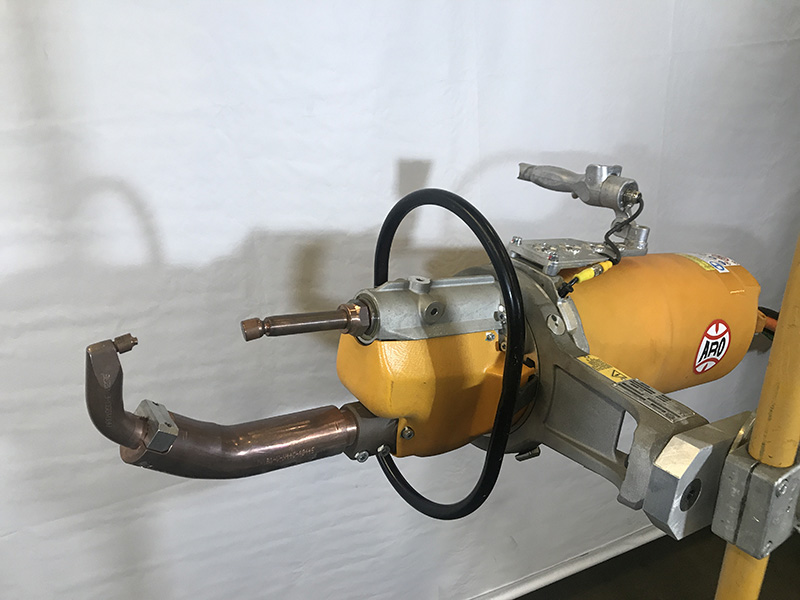

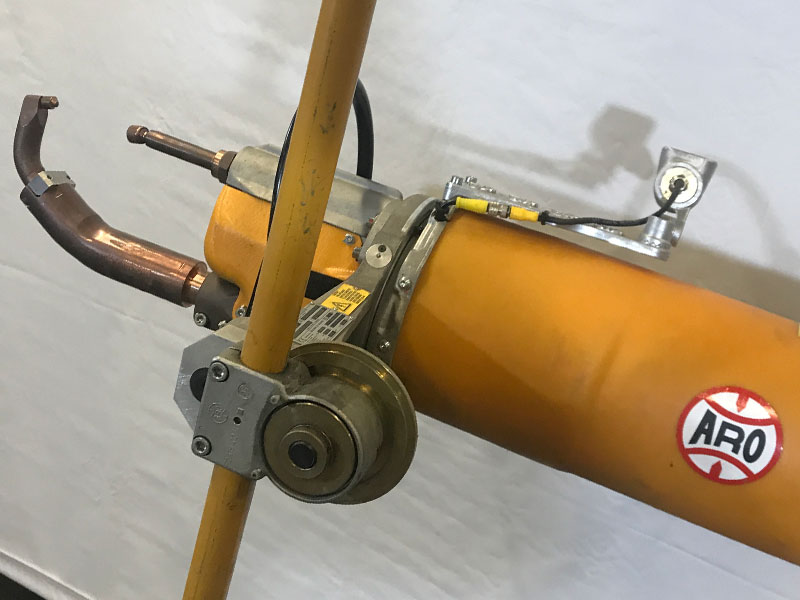

Used ARO Mid-Freq C-Type Weld Gun

WSI-SELECT – In-Stock and For Sale at Weld Systems Integrators

WSI Serial #: CMA5711A156J7M

Great condition ARO mid-freq c-type weld gun [ WSI Stock / Serial #: CMA5711A156J7M ] only used temporarily for 30 days in a prototype design. Never used in production.

WSI maintains an IN-STOCK inventory of new and used resistance welding equipment at our Warrensville Heights, Ohio location for quick shipment and delivery. Contact our knowledgeable sales team at 844-WSI-WELD or +1-216-475-5629 for immediate assistance.

EQUIPMENT QUOTE
Quote RequestSpecifications

Please submit the following form to request additional information.

Enter WSI Serial #: CMA5711A156J7M on the following quote request form.

If you have any questions on WSI Select – IN-STOCK equipment available from Weld Systems Integrators, please call 844-WSI-WELD or +1-216-475-5629 and ask to speak with a WSI Engineer.

    SPECIFICATIONS WSI Stock / Serial #: CMA5711A156J7M
    Manufacturer Name: ARO
    Type: Mid-Freq C-Type Weld Gun
    Mfg. Model #: V142814000U
    KVA: 70
    480
    Phase: Three-Phase
    Low Secondary Voltage: n / a
    High Secondary Voltage: 8.5
    # of Tap Switch Positions: n / a
    Max. Secondary Current: 30K Amps
    Throat Depth to Center of Platens: n / a
    Platen Size: n / a
    Throat Depth to Center of Electrodes: n / a
    Arm Diameter: 60 mm
    Holder Diameter: See arm configuration picture
    Electrode Size: 5 RW
    Cylinder Type: Air
    Cylinder Diameter: n / a
    Cylinder Stroke: 70 mm total, working plus retract
    Maximum Weld Force, #’s: 1030 lbs.
    Weld Control Manufacturer: Customer selection
    Weld Control Mfg. Model #: Customer selection
    Disconnect Size: n / a
    Initiation: Trigger handle
    General Condition: Great condition Aro gun, only used temporarily for 30 days in a prototype design. Never used in production.
    Additional Details: –
    Warranty: 6 months
    Availability: Immediate
