Used Federal Rocker Arm Welder
WSI-SELECT – In-Stock and For Sale at Weld Systems Integrators
WSI Serial #: 20587

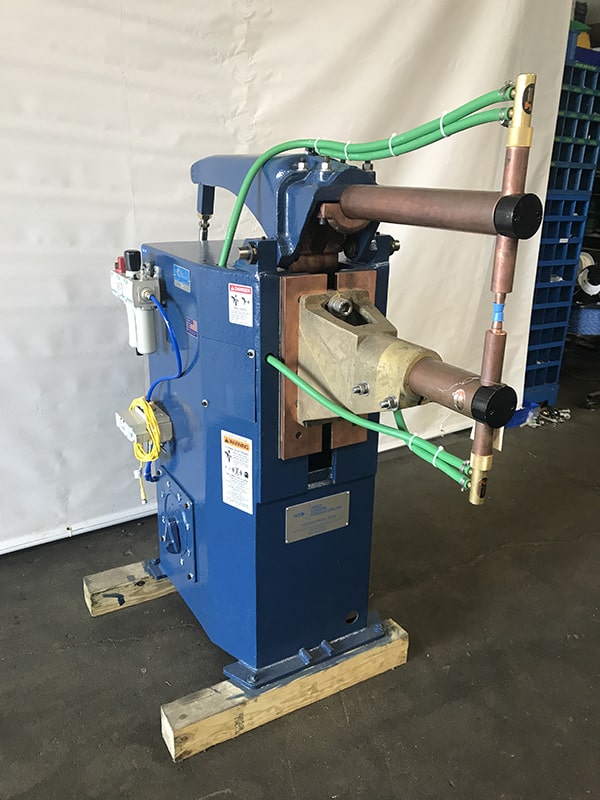

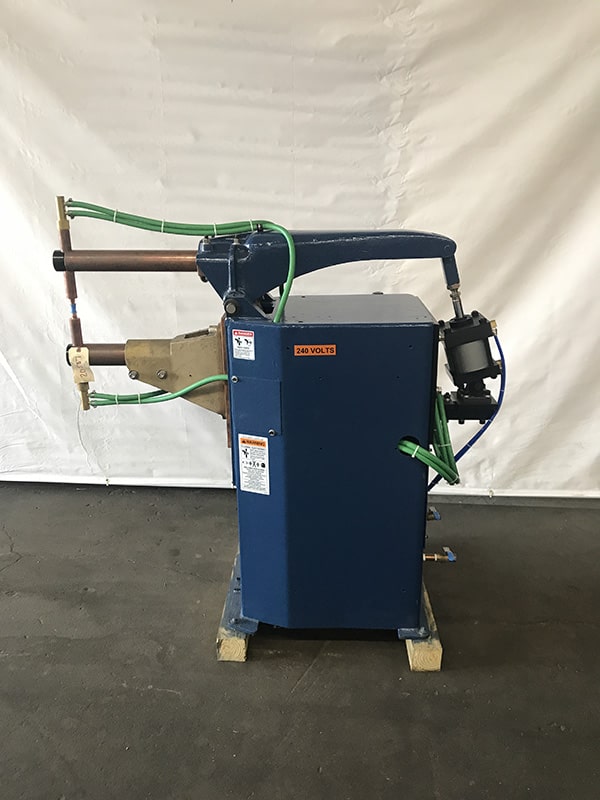

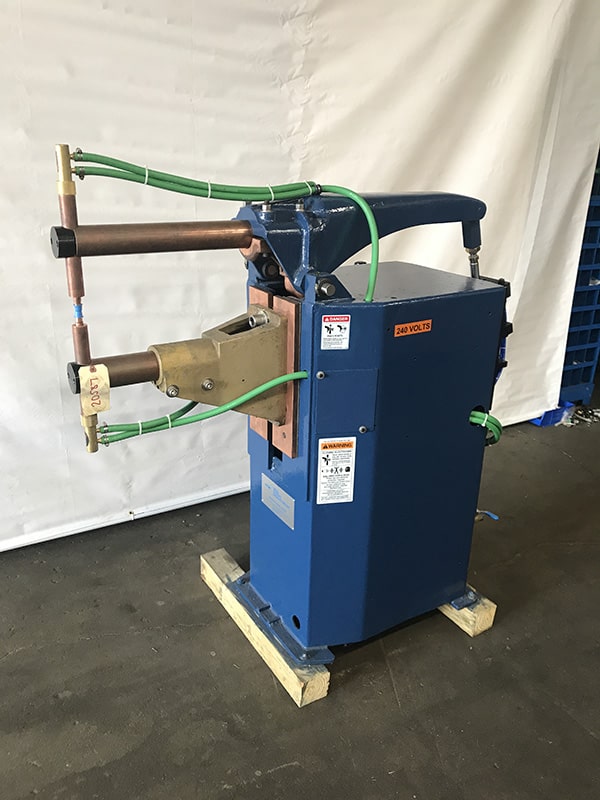

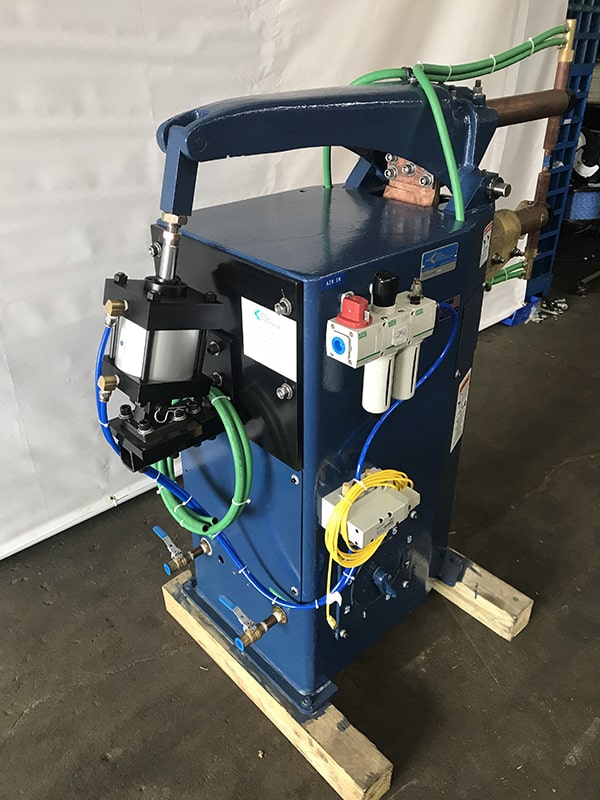

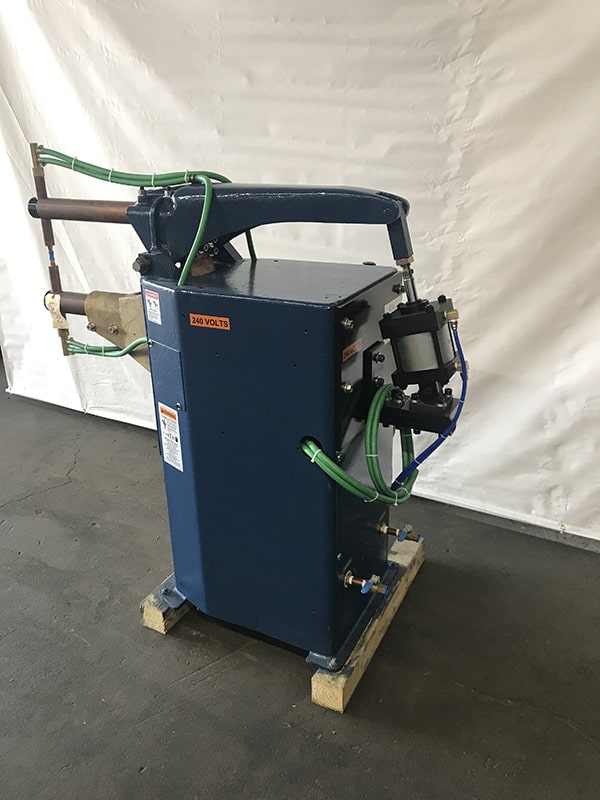

Used Federal rocker arm welder [ WSI stock / serial #: 20587 ] FOR SALE at Weld Systems Integrators. Remanufactured Welder – welder stripped of all components, primed and painted. Transformer reconditioned, new air cylinder, filter, regulator, lubricator, color-coded air hosing, and flow control valves. New water system, including manifolds, strainer, LOTO shut-offs, and color-coded hosing. New holders and electrodes.
WSI maintains an IN-STOCK inventory of new and used resistance welding equipment at our Warrensville Heights, Ohio location for quick shipment and delivery. Contact our knowledgeable sales team at 844-WSI-WELD or +1-216-475-5629 for immediate assistance.
EQUIPMENT QUOTEPlease submit the following form to request additional information.
Enter WSI Serial #: 20587 on the following quote request form.
If you have any questions on WSI Select – IN-STOCK equipment available from Weld Systems Integrators, please call 844-WSI-WELD or +1-216-475-5629 and ask to speak with a WSI Engineer.
| SPECIFICATIONS | WSI Stock / Serial #: 20587 |
|---|---|
| Manufacturer Name: | Federal |
| Type: | Rocker Arm |
| Mfg. Model #: | RA-3-24 |
| KVA: | 50 |
| Voltage | 220 |
| Phase: | Single |
| Low Secondary Voltage: | n / a |
| High Secondary Voltage: | n / a |
| # of Tap Switch Positions: | 8 |
| Max. Secondary Current: | 22.6K Amps |
| Throat Depth to Center of Platens: | n / a |
| Platen Size: | n / a |
| Throat Depth to Center of Electrodes: | 24″ |
| Arm Diameter: | 2-1/2″ Top / 2-3/4″ Bottom |
| Holder Diameter: | 1-1/4″ |
| Electrode Size: | 5 RW |
| Cylinder Type: | Air |
| Cylinder Diameter: | 5″ |
| Cylinder Stroke: | 2″ |
| Maximum Weld Force, #’s: | 1000 Lbs @ 80 PSI |
| Weld Control Manufacturer: | Customer selection |
| Weld Control Mfg. Model #: | Customer selection |
| Disconnect Size: | n / a |
| Initiation: | 2 Stage Foot Switch |
| General Condition: | Remanufactured Welder – welder stripped of all components, primed and painted. Transformer reconditioned, new air cylinder, filter, regulator, lubricator, color-coded air hosing, and flow control valves. New water system, including manifolds, strainer, LOTO shut-offs, and color-coded hosing. New holders and electrodes. |
| Additional Details: | Two-stage foot switch installed. |
| Warranty: | 1 Year |
| Availability: | Immediate |
